lb12.2-100x200(bv2)

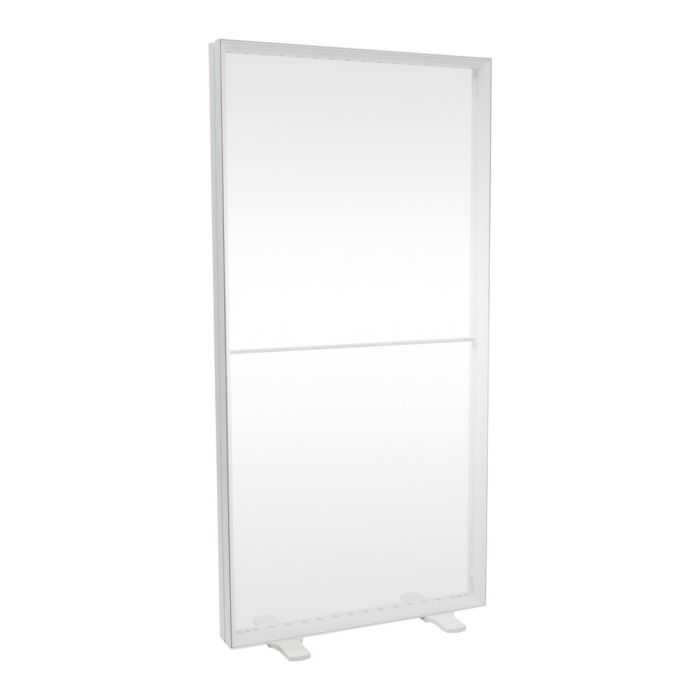

LED frame 1000x 2000 mm, white synthetic lightbox for 2 SEG graphics, packed in a bag v2
Article number
6911410203
Availability of this item
Available in 14 different sizes!
- Double sided backlit LED display for silicone edge graphic
- Freestanding frame with 2 stabilising feet
- made of white plastic, from 2m width with steel side-feet
- Internal LED bars on top and bottom of the profile –
- perfect protected
- Toolless and quick assembly due to plug and go system
- Exhibition booth configurations can be implemented
- with various connectors
- Set includes frame with 2 stabilising feet and
- LED backlight, horizontal pole and
- bag with foam inlay (from 2 m width rollable bags)
- high quality – affordable price – 2-years guarantee on system parts
Discover your possibilities!
Registered with the ear foundation under WEEE-Reg-Nr. DE 61509579
Optional:
- Counter lb12c
- Hygiene dispenser hd-sensor
- Brochure holder lh12
- Various connectors
Digital Print:
For this product we offer fabrics in backlit, blockout, unprinted blockout and dekotex.
| Weight | 12,60 kg |
|---|---|
| Single Carton Width | 110 cm |
| Single Carton Height | 18 cm |
| Single Carton Depth | 38 cm |
| Pieces/ Outer Carton | 1 |
| Pieces/ Euro Pallet | 17 |
| System Width | 100 cm |
| System Height | 200 cm |
| System Depth | 12 cm |
| Profile Depth | 120 mm |
| Modular | yes |
| Feet Included | yes |
| Number of Feet | 2 Stück |
| System Execution | doppelseitig |
| LEDs | ja |
| Type of Lighting | LED-Hinterleuchtung |
| Position of LEDs | oben / unten |
| Application | indoor |
| Type of Packaging | carry bag |
| Material/ System | Kunststoff |
| Material/ Foot | Kunststoff |
| Colour/ System | white |
| Power Supply | 120 W, 100-240 V~, 50/60 Hz |
| LED Total Power | 96 Watt |
| Number/ LED Dots | 32 Stück |
| Power/ LED Dot | 3 Watt |
| Light Colour | 6000 Kelvin |
| Data Format | 1020x 2020 mm |
| Material/ Graphic | Backlit / Blockout / Blockout white - white / Dekotex |
| Graphic Finishing | Keder 12x3 mm |
